A-1802-0929

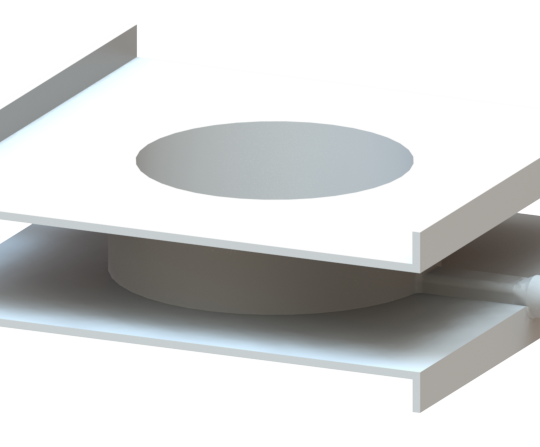

Coolgap bobbin Planar ER64/13/51
Dimensions Height 17,70mm x Diameter 26,20mm
Heat dissipation up to 496 W
Pressure Drop up to 525.45 mBar
-
A-1802-0930

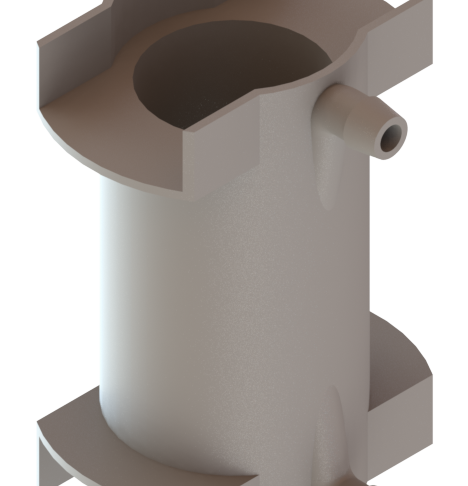

Coolgap bobbin ETD44/22/15
Dimensions Height 43,10mm x Diameter 16mm
Heat dissipation up to 597 W
Pressure Drop up to 210.95 mBar
-
A-1802-0931

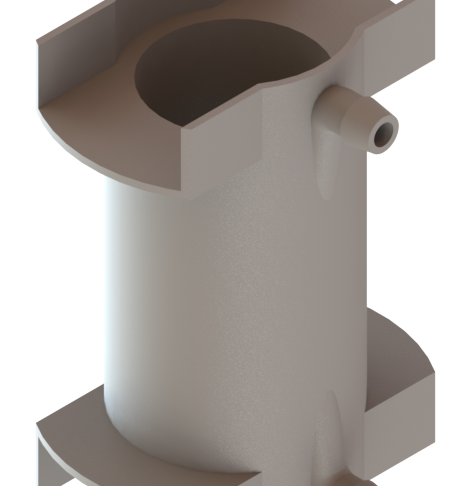

Coolgap bobbin ETD49/25/16
Dimensions Height 47’90mm x Diameter 17,5mm
Heat dissipation up to 645 W
Pressure Drop up to 262.93 mBar
-
A-1802-0932

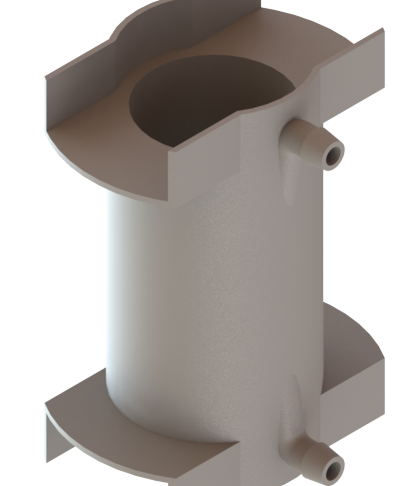

Coolgap bobbin ETD54/28/19
Dimensions Height 53,40mm x Diameter 19,60mm
Heat dissipation up to 701 W
Pressure Drop up to 499.80 mBar
-
A-1802-0933

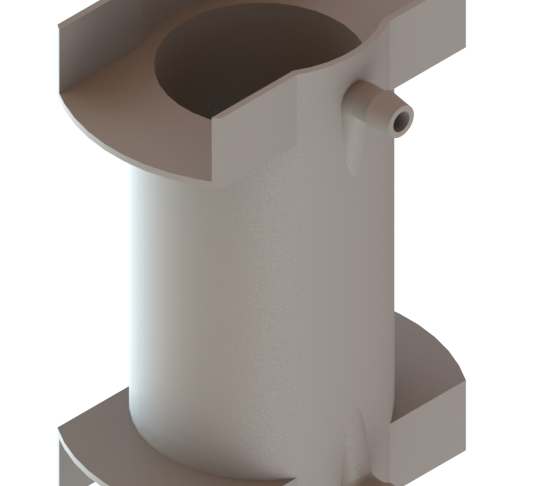

Coolgap bobbin ETD59/31/22
Dimensions Height 60,20mm x Diameter 22,40mm
Heat dissipation up to 715 W
Pressure Drop up to 666.27 mBar
-
A-1802-0934

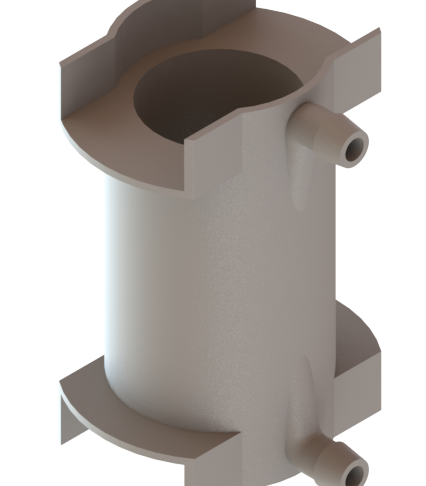

Coolgap bobbin ER42/22/15
Dimensions Height 41’90mm x Diameter 15,80mm
Heat dissipation up to 591 W
Pressure Drop up to 215.57 mBar
