A-1802-0937

Coolgap bobbin ER48/21/21

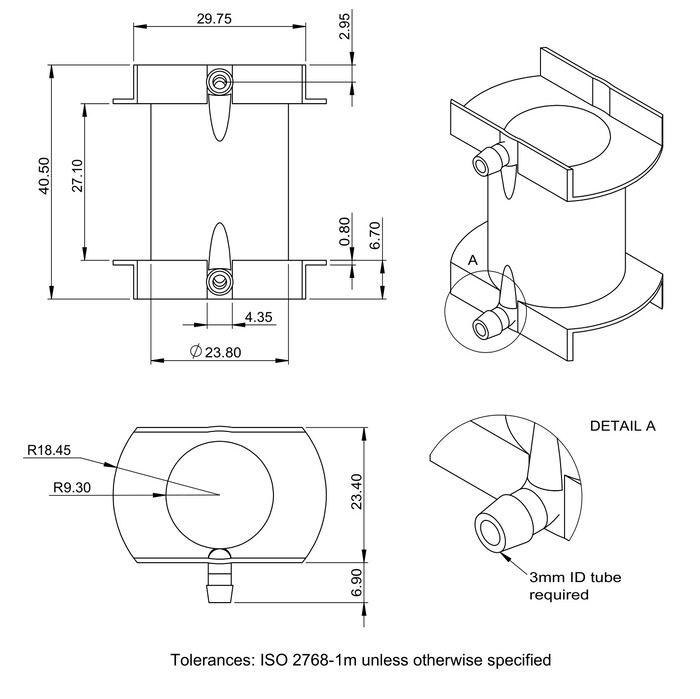

Dimensions Height 40,50mm x Diameter 18,60mm

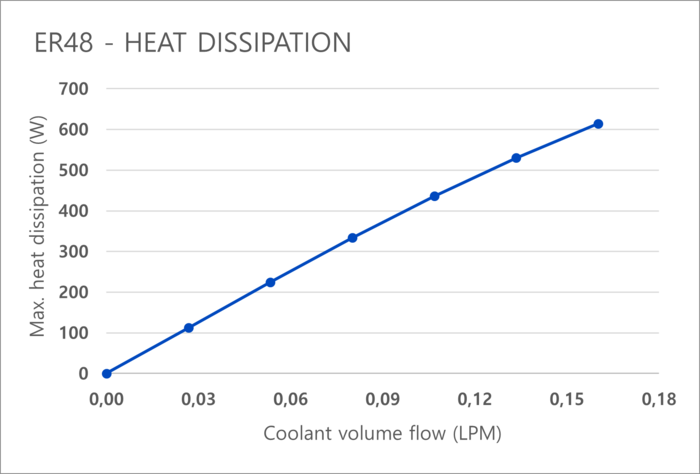

Heat dissipation up to 614 W

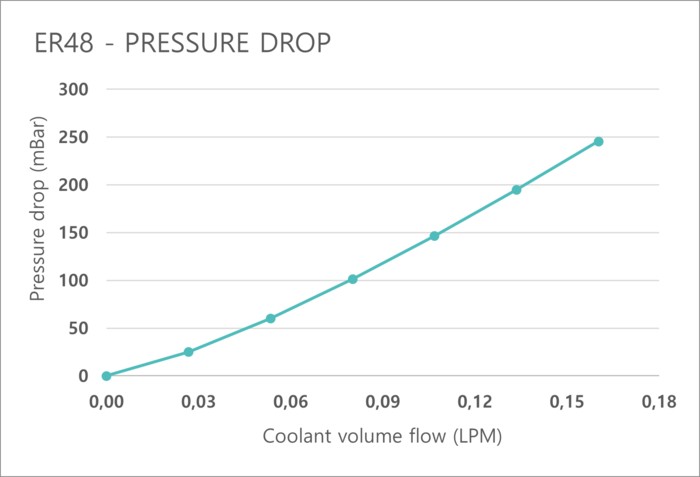

Pressure Drop up to 245.64 mBar

Download Datasheet

25,00

Coilformer material: High-temperature resin
Thermal conductivity: 0,63 W/mK
Specific heat: 951 J/kgK
Density: 1721 kg/m3
Thermal expansion coefficient: 47 um/m/°C
Thermal class (IEC61857-21): 155°C (F)
Compatibility: Good water, glycol and oil compatibility
