A-1802-0934

Coolgap bobbin ER42/22/15

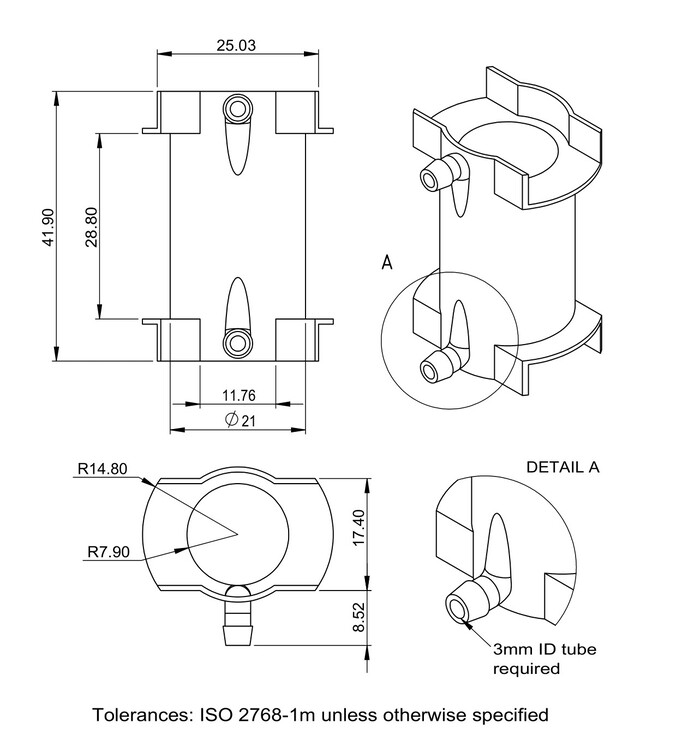

Dimensions Height 41’90mm x Diameter 15,80mm

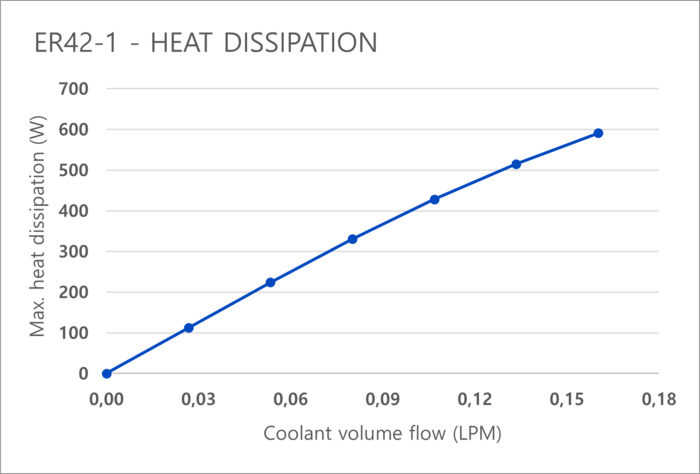

Heat dissipation up to 591 W

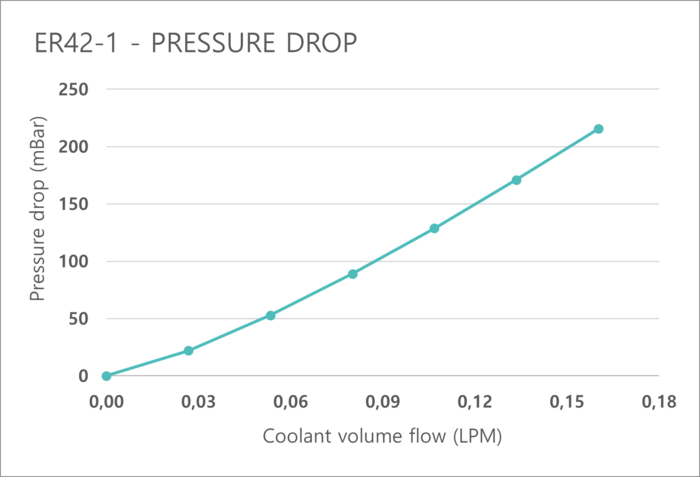

Pressure Drop up to 215.57 mBar

Download Datasheet

25,00

Coilformer material: High-temperature resin
Thermal conductivity: 0,63 W/mK
Specific heat: 951 J/kgK
Density: 1721 kg/m3
Thermal expansion coefficient: 47 um/m/°C
Thermal class (IEC61857-21): 155°C (F)
Compatibility: Good water, glycol and oil compatibility
