A-1802-0927

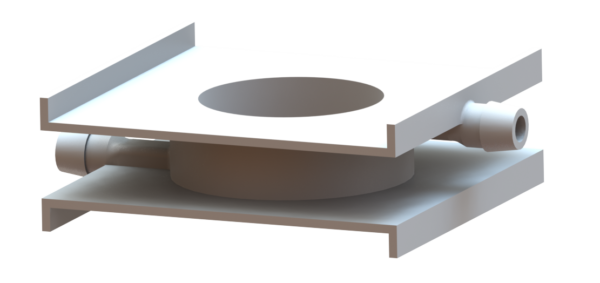

Coolgap bobbin Planar ER41/76/32

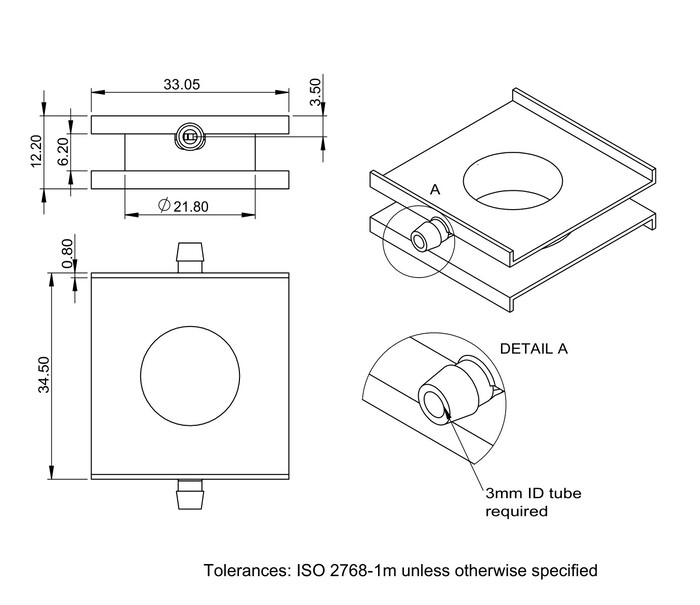

Dimensions Height 12,20mm x Diameter 33,20mm

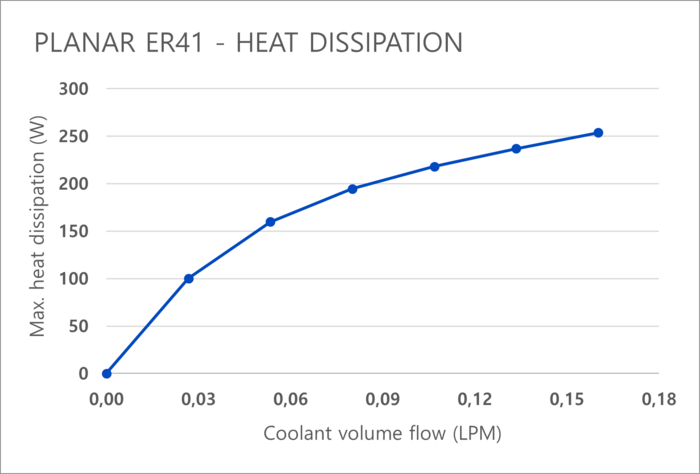

Heat dissipation up to 254 W

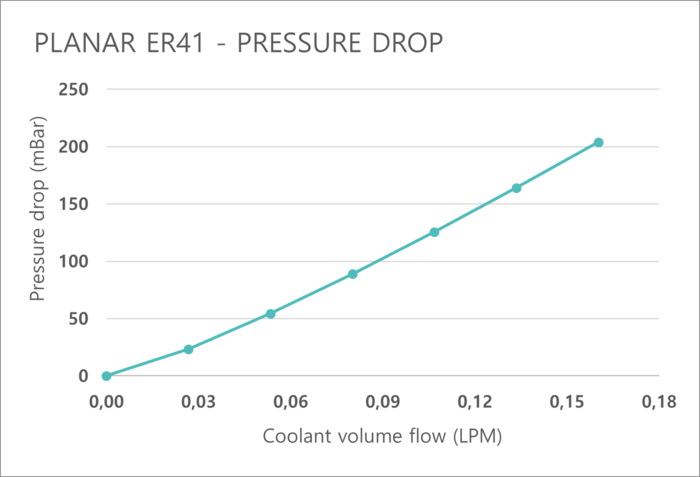

Pressure Drop up to 203.85 mBar

Download Datasheet

25,00

Coilformer material: High-temperature resin
Thermal conductivity: 0,63 W/mK
Specific heat: 951 J/kgK
Density: 1721 kg/m3
Thermal expansion coefficient: 47 um/m/°C
Thermal class (IEC61857-21): 155°C (F)
Specific heat: 951 J/kgK
Compatibility: Good water, glycol and oil compatibility
