A-1802-0923

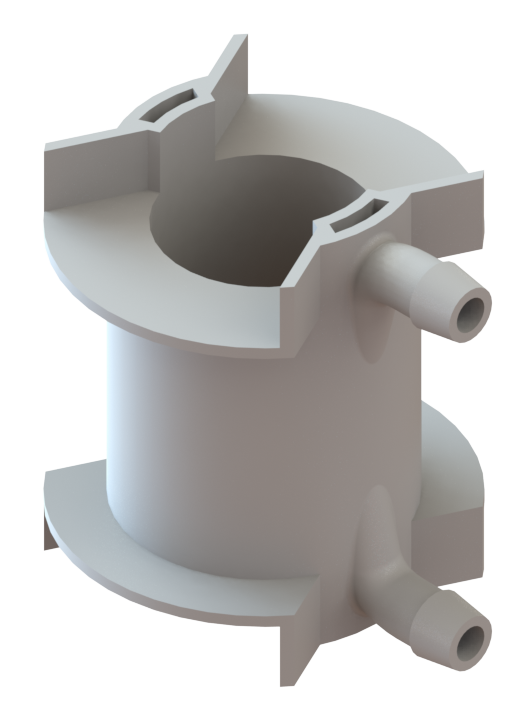

Coolgap bobbin PQ32/30

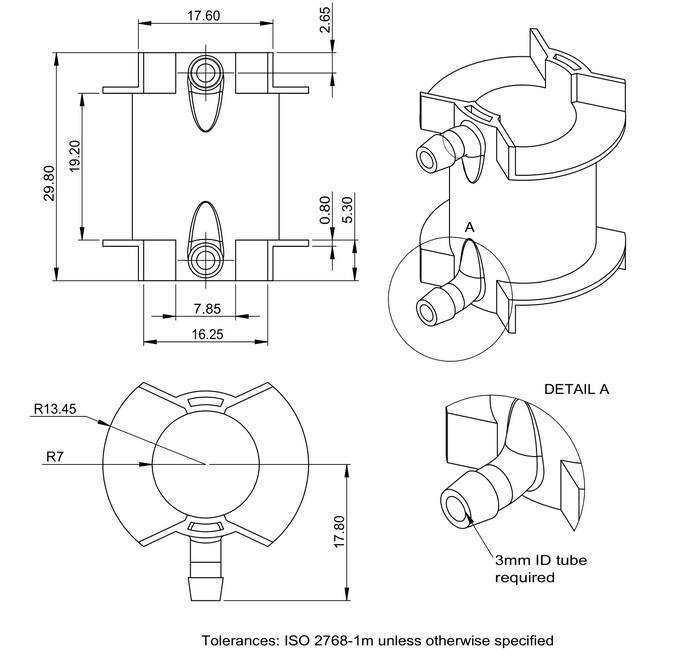

Dimensions Height 29,80mm x Diameter 14mm

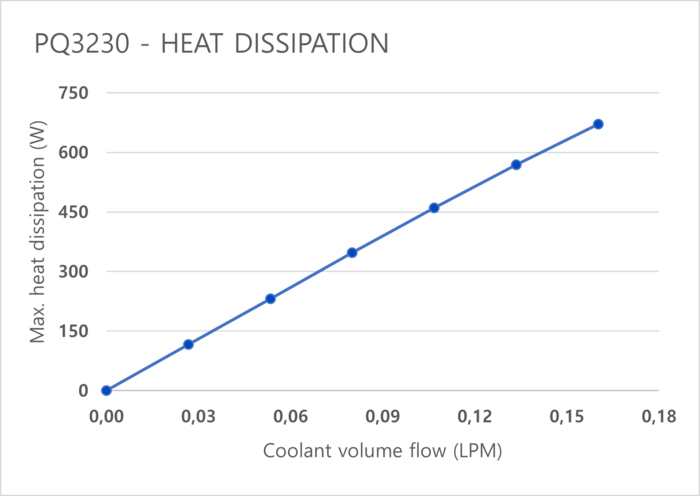

Heat dissipation up to 671 W

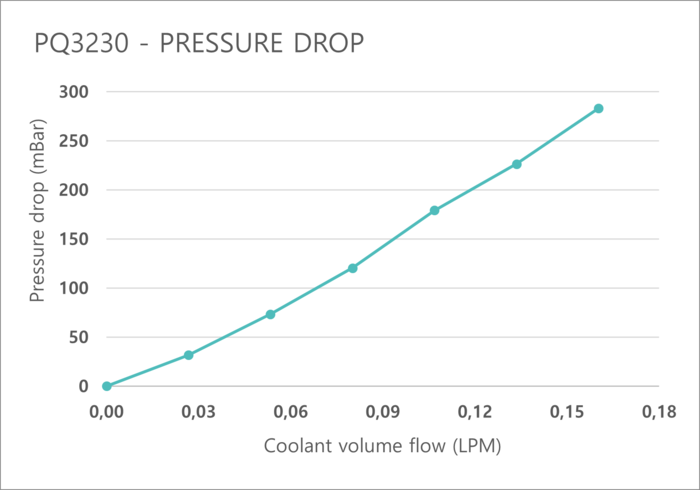

Pressure Drop up to 185.30 mBar
25,00 €
| Coilformer material: | High-temperature resin |
| Thermal conductivity: | 0,63 W/mK |
| Specific heat: | 951 J/kgK |
| Density: | 1721 kg/m3 |
| Thermal expansion coefficient: | 47 um/m/°C |
| Thermal class (IEC61857-21): | 155°C (F) |
| Specific heat: | 951 J/kgK |
| Compatibility: | Good water, glycol and oil compatibility |
Do you need technical help?Contact
Benefits
Heat Removal
Volume Reduction
Multiple Designs
Diverse uses
